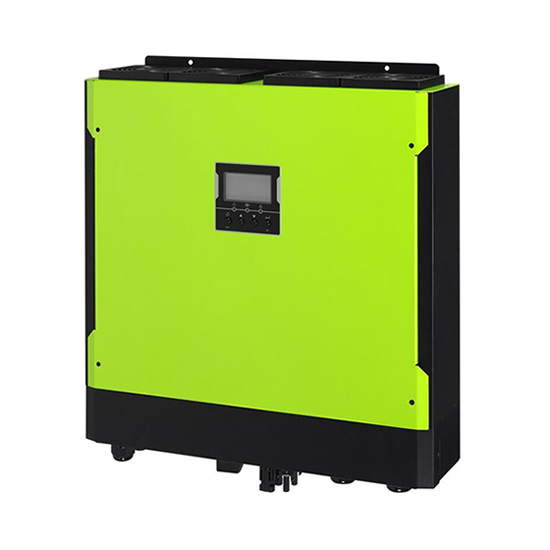

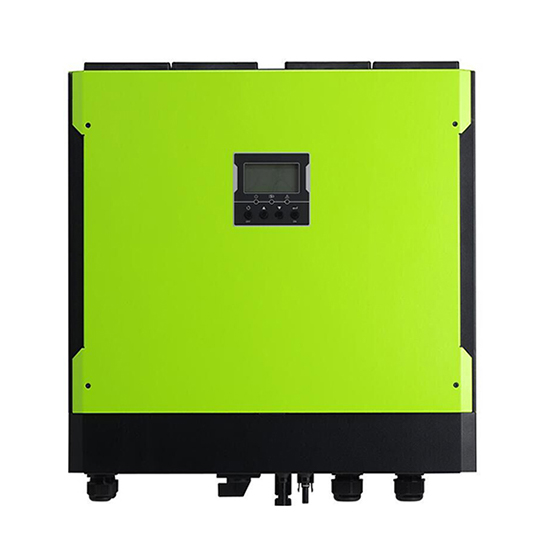

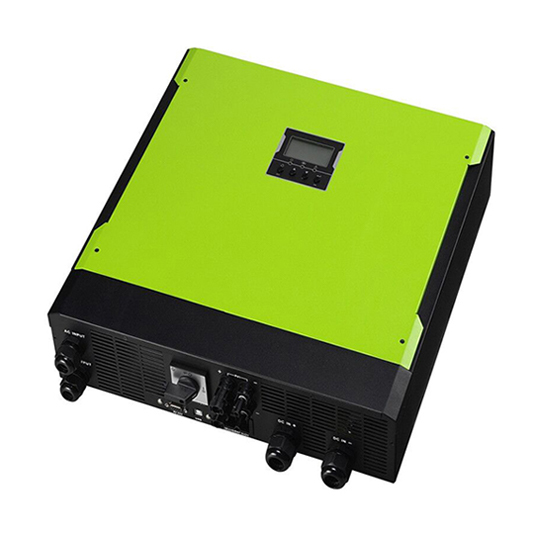

Hybrid Solar Inverter, 3kW~10kW

ATO produces hybrid solar inverters from 3kW to 10 kW. The inverter has excellent quality and stable performance. It can not only convert direct current and alternating current into each other, but also realize the transformation of voltage and phase between the current itself.

A hybrid solar inverter is a device that combines a solar inverter and an energy storage inverter, which can intelligently manage the connection of solar photovoltaic panels, solar cells and the public grid. ATO can design and produce hybrid solar inverters from 3kW to 10 kW, with a battery output AC frequency range of 50 Hz / 60 Hz. If you are looking for efficient and high quality hybrid solar inverters, our team has a solution for you.

Specification

Rated Power	3kW~10kW
Interace	Communication Port	RS-232/USB
Environment	Humidity	0 ~ 90% RH (No condensing)
AC Input	AC Start-up Voltage	AC 120V-140V
AC Input	Nominal Frequency	50Hz / 60Hz
Battery Mode Output (AC)	Output Waveform	Pure sine wave
Battery Mode Output (AC)	Output Power	3000VA/3000W~10000VA/10000W
Grid Output (AC)	Output Voltage Range	AC 184V-265V
	Output Frequency Range	47.5-51.5Hz~59.3-60.5Hz
	Nominal Output Current	13A~14.5A
PV Input (DC)	Maximum DC Power	4500W~14850W
	Nominal DC Voltage	DC 360V~720V
	Maximum DC Voltage	DC 500V~900V
	Isc PV	18A~25A

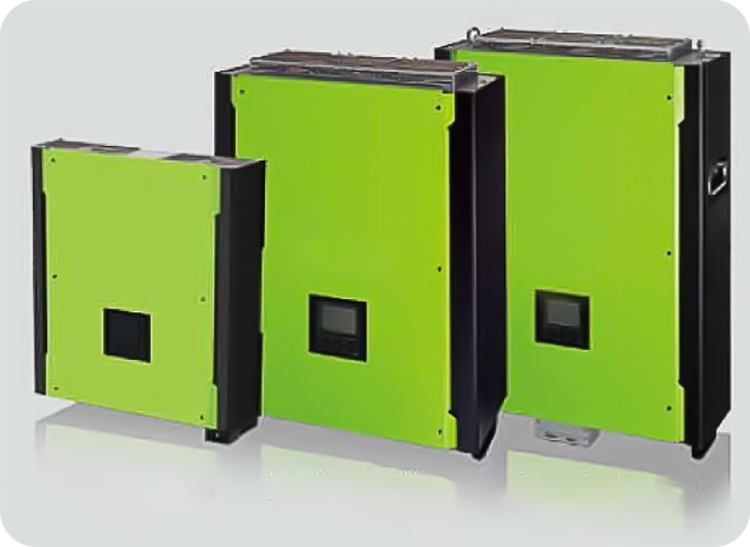

Inverter Customization

ATO offers a range of hybrid inverters with power ratings up to 10kW. If you have special requirements that need to be customized, our professional technical team will create a solution for you to achieve your goals. Provide us with detailed customization elements before customizing the hybrid solar inverter. The following are the considerations for customization: Maximum DC voltage and starting voltage/initial supply voltage of photovoltaic input (DC) Nominal output current of grid output (AC) Nominal output voltage, output power for battery mode output (AC) Also battery mode output efficiency (DC to AC) The size of the product

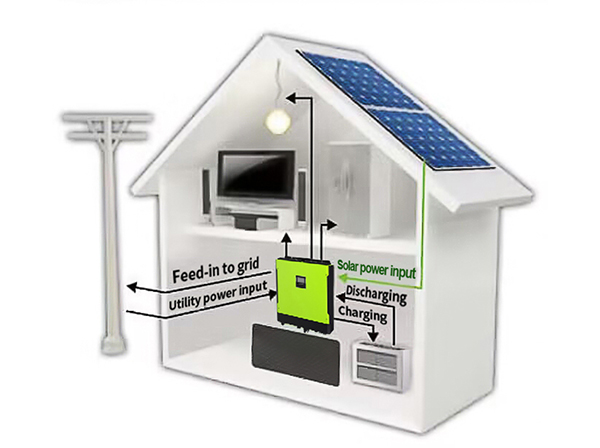

Reduce Dependence on External Power

This is a simple yet smart solar energy storage system that allows home users to store energy into batteries for night use or for their own use as needed. Power priority is programmable through smart software. At night or during a power outage, it automatically consumes the battery's reserve power, thus reducing reliance on mains power.

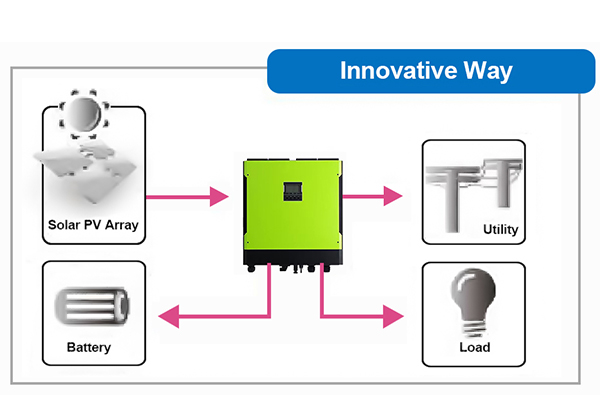

Feed-in is not the only option

Compared with traditional grid-connected inverters, solar inverters can not only input power to the grid, but also store solar power into the grid. The battery is for future use and supplies power directly to the load. Discharge the battery first and save money when photovoltaic energy is low, a hybrid solar inverter can save money by using battery energy first. The hybrid solar inverter does not consume AC power from the grid until the battery is low.
